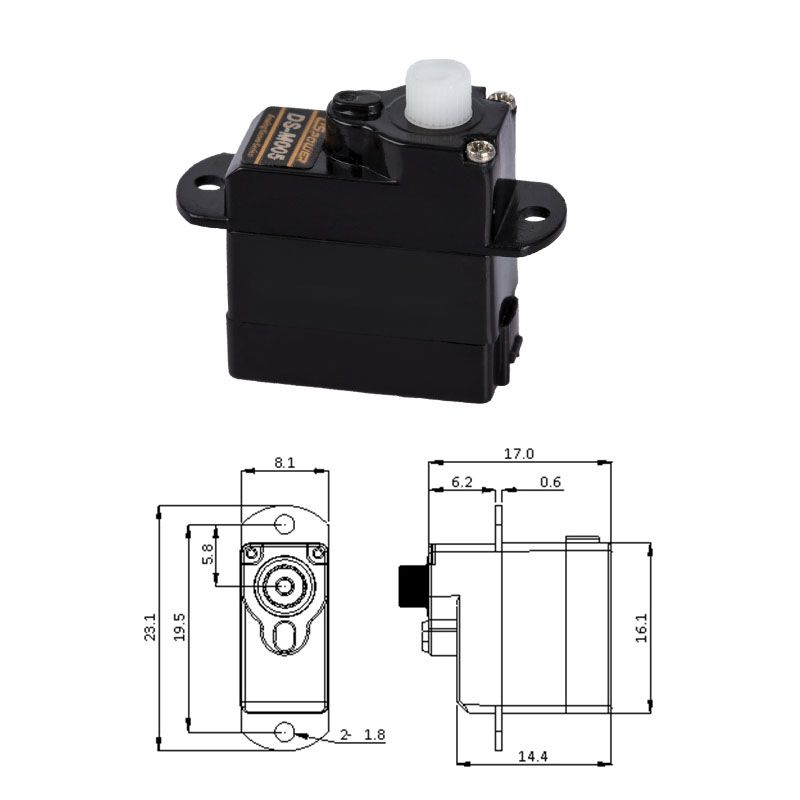

Dimension |
16.7*8.2*17mm(0.66*0.32*0.67inch) ; |
|
Voltage |
4.2V (2.8~4.2VDC); |
|
Operation torque |
≥0.075kgf.cm (0.007N.m); |
|
Stall torque |
≥0.3kgf.cm (0.029N.m); |
|
No load speed |
≤0.06s/60°; |
|
Angel |
0~180 °(500~2500μS); |
|
Operation current ≥0.087A; |
|
|
Stall current |
≤ 0.35A; |
|
Back lash |
≤1°; |
|
Weight |
≤ 2g (0.07oz); |
|
Communication |
Digital servo; |
|
Dead band |
≤ 2us; |
|
Position sensor |
VR (200°); |
|
Motor |
Coreless motor; |
|
Material |
PA casing; PA gear (Gear ratio 242：1); |
|
Bearing |
0pc Ball bearing; |
|
Waterproof |
IP4; |
For with Remote Control Helicopters,Airplane, Robot, Boats,Robot Arm and Smart home. Support All Kind of R/C Toys and Arduino Experiments.
A: Our servo have FCC, CE, ROHS certification.
Q: For a customized servo, how long is the R&D time (Research& Development time)?A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
