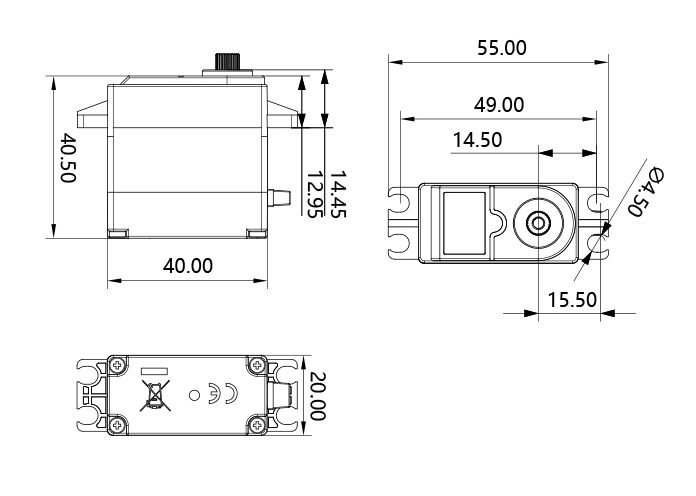

Dimension |
40.3*20.3*51.2mm(1.58*0.80*2.01inch) ; |
|
Voltage |
7.4V (6~7.4VDC); |
|
Operation torque |
≥5kgf.cm (0.49N.m); |
|
Stall torque |
≥20kgf.cm (1.96N.m); |
|
No load speed |
≤0.18s/60°; |
|
Angel |
0~180 °(500~2500μS); |
|
Operation current |
≥1.05A; |
|
Stall current |
≤ 4.2A; |
|
Back lash |
≤1°; |
|
Weight |
≤ 60g (2.11oz); |
|
Communication |
Digital servo; |
|
Dead band |
≤ 2us; |
|
Position sensorVR (200°); |
|
|
Motor |
Core motor; |
|
Material |
PA casing;Brass gear (Gear ratio 315：1); |
|
Bearing |
2pc Ball bearing; |
|
Waterproof |
IP4; |
For with Remote Control Helicopters,Airplane, Robot, Boats,Robot Arm and Smart home. Support All Kind of R/C Toys and Arduino Experiments.
A: Our servo have FCC, CE, ROHS certification.
Q: For a customized servo, how long is the R&D time (Research& Development time)?A: Normally, 10~50 business days, it depends on requirements, just some modification on standard servo or a totally new design item.
Q. Can i ODM/ OEM and print my own logo on the products?A: Yes, Through 10years research and development of servo, De Sheng technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online servos does not match your requirements, please do not hesitate to send message to us, we have hundreds of servos for optional, or customizing servos based on demands, it is our advantage!
A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.
