Stall Torque |
≥25.0kgf.cm at 6.0V |
|
≥32.kgf.cm at 7.4V |
|
|
No Load Speed |
≤0.20sec./60°at 6.0V |
|
≤0.17sec./60°at 7.4V |
|
|
Operating Travel Angle |
180°±10°（500~2500μs） |
|
Mechanical Limit Angle |
360° |
|
Weight |
70±1 g |
|

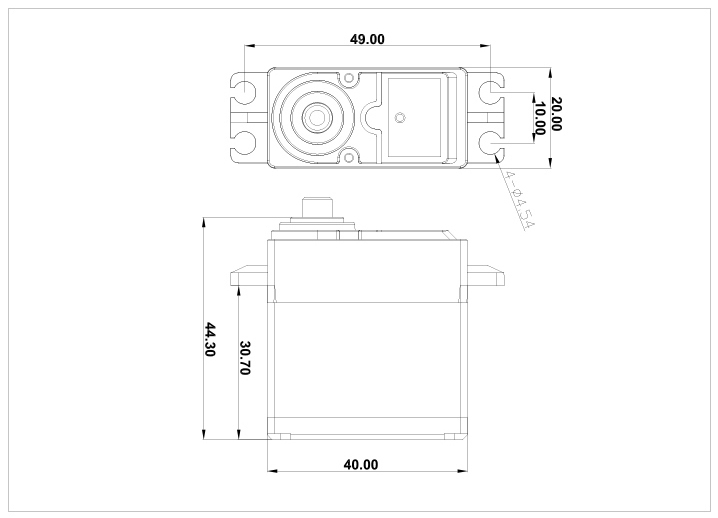

Size |
40 ×20 ×41.1mm |
|
Case material |
CNC aluminiummiddle shell |
|
Gear Set Material |
Metal gear |
|
Motor Type |
DC Motor |
For with Remote Control Helicopters,Airplane, Robot, Boats,Robot Arm and Smart home. Support All Kind of R/C Toys and Arduino Experiments.
A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
Q: Can I get servo with un-typical case?A: Yes, we are professional servo manufacturer since 2005, we have exellent R&D team, we can R&D servo according to customers' requirements, give you a totally support, we has R&D and manufactured all kinds of servo for many companies so far, like as servo for RC robot, UAV drone, smart home, industrial equipment.
Q. Servo Application？A: DS-Power servo have wide application, Here are some of applications of our servos: RC model, education robot, desktop robot and service robot; Logistics system: shuttle car, sorting line, smart warehouse; Smart home: smart lock, switch controller; Safe-guard system: CCTV. Also agriculture, health care industry, military.
Q: What is your servo's rotation angle?A: The rotation angle can be adjusted according to your requirements, but it is 180° at default, please do contact with us if you need special rotation angle.
